| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Marine Turbo |
| Certification: | ISO; CCS; GL |
| Model Number: | T- NA series |
| Minimum Order Quantity: | 1 pcs |
| Packaging Details: | Carton box, wood case |
| Delivery Time: | 1-4 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 500 pcs / month |
| Model: | T- NA Series | Product Name: | Turbocharger Nozzle Ring, Marine Turbocharger Nozzle Ring, Marine Turbo Nozzle Ring |
|---|---|---|---|
| Size: | Standard Size, Or As Customer's Request | Type1: | Exhaust Gas Turbocharger |
| Fuel: | Heavy Fuel Oil, Marine Diesel Oil, Biofuel And Gas Operation | Engine Type: | Diesel, Biofuel And Gas Engines |
| Engine Power Range: | 1650 KW -24,500kW | Turbine Type: | Axial Flow |
| Bearing Design: | Inboard Plain Bearing Design | Lubrication: | By Engines Lube Oil System |
| Quality: | High Perforce, Top And High Level, Guaranteed | Warranty: | 12 Months |
| Application: | Marine Engine, Power Engine And Industrial Engine | Package: | Wood Case, Carton Box Or According To Require |
| Highlight: | turbo nozzle ring,turbine diffuser,Industrial Engines Turbo Nozzle Ring |
||

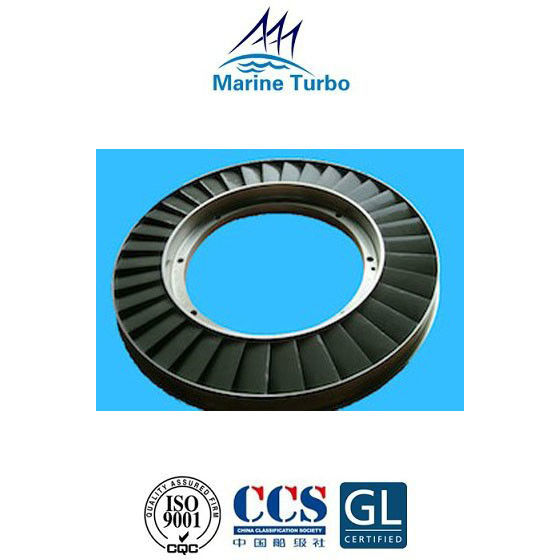

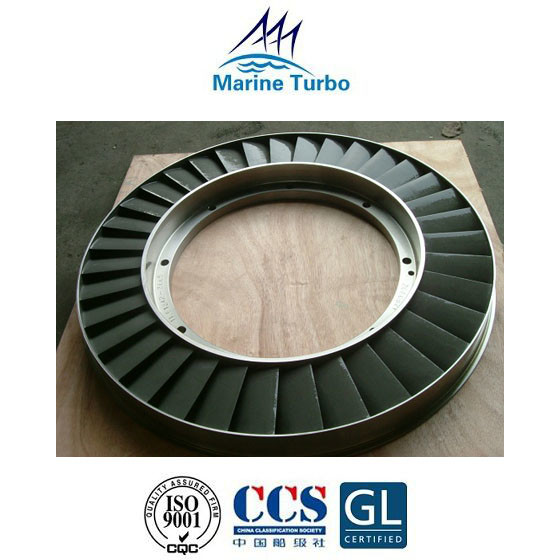

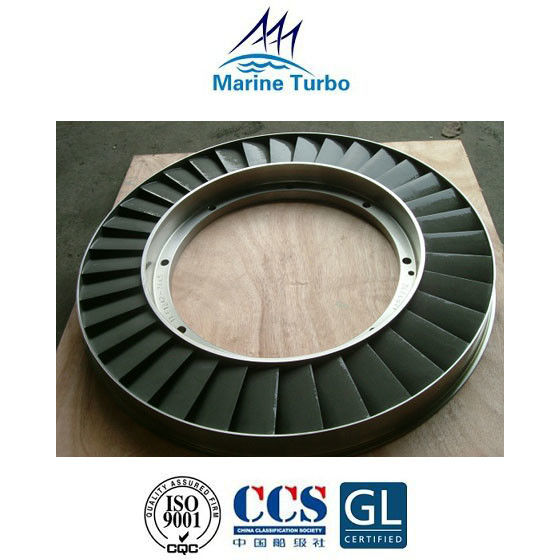

T- NA series nozzle ring belongs to T- / T- NA turbochargers and which were developed comparatively simply with a cast axial turbine, which is suitable for heavy fuel oil engines, marine diesel oil engines, biofuel and gas operation enginess. T- NA series turbochargers are available for an engine power range from 1,650 kW to 24,500kW per turbocharger and with easy maintenace or overhaul.
T-NR series turbocharger is widely used in Marine engine, Power engine and Industrial engine.
| T- | T- NA Series |
| T- NA34/T | |
| T- NA34/S | |
| T- NA40/T | |
| T- NA40/S | |
| T- NA48/T | |
| T- NA48/S | |
| T- NA57/N | |
| T- NA57/M | |
| T- NA57/T7 | |
| T- NA57/T8 | |
| T- NA57/T9 | |
| T- NA70/T7 | |
| T- NA70/T9 |
The turbine is driven by the engine exhaust gas, which enters via the gas inlet casing. The gas expands through a nozzle ring where the pressure energy of the gas is converted to kinetic energy. This high velocity gas is directed onto the turbine blades where it drives the turbine wheel, and thus the compressor at high speeds (10 -15000 rpm). The exhaust gas then passes through the outlet casing to the exhaust uptakes.
The nozzle ring need to bear the extremely high temperature and high pressure, so it's very crucial for its material selection.
The turbocharger nozzle ring is usually fabricated from a creep resistant chromium nickel alloy, heat resisting moly-chrome nickel steel or a nimonic alloy.
