| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Marine Turbo |
| Certification: | ISO |
| Model Number: | T- TPS Series |
| Minimum Order Quantity: | 1 pcs |
| Packaging Details: | Carton box, wood case |
| Delivery Time: | 2-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs / month |
| Model: | T- TPS Series Turbocharger Bearing | Engine Type: | Diesel |
|---|---|---|---|
| Turbine Type: | Single Stage Mixed-flow Turbine | Quality: | High Perforce, Top And High Level, Guaranteed |
| Certification: | ISO9001 | Warranty: | 12 Months |
| Highlight: | turbocharger bearing,turbo replacement parts,Exhaust Gas Turbo Thrust Bearing |
||

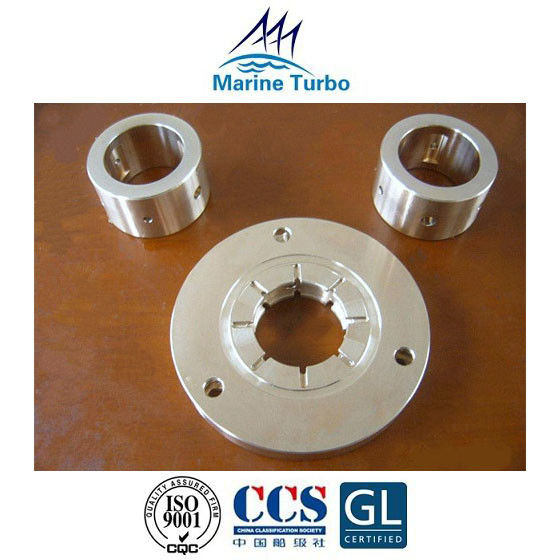

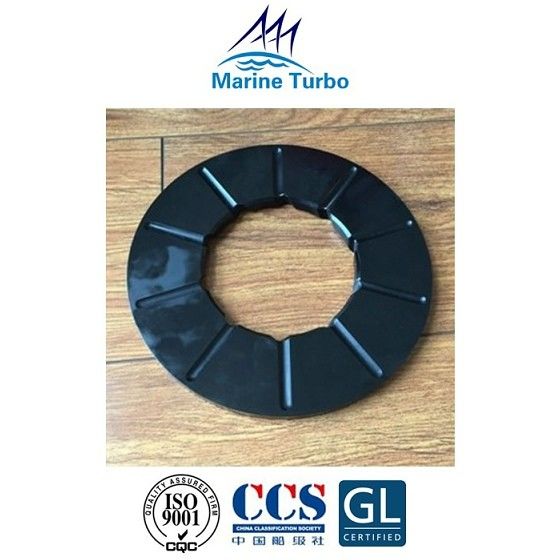

T-TPS series Turbo Bearing / Turbocharger bearings work under high temperature, high speed and light load conditions to ensure reliable operation of the bearings under working conditions. In addition to ensuring that the structural design, materials and ufacturing of the bearings to meet the requirements, good maintenance agement is also critical important.
It consists of single stage mixed-flow turbine, centrifugal compressor, external engine lubricating oil system.
it can be matched with high-speed diesel engine and gas engine of 500-3000kw.
cooled & uncooled bearing casing design.
The constant pressure mixed turbine is used to increase the volume flow through the nozzle ring with the pulse application.
The compressor wheel adopts after sloping shunt blades and provide three different periods of pressure.
The overall efficiency of turbocharger is 62%-64%, the maximum pressure ratio is 4.5.
It is compact structure, easy to maintain and widely used in marine main engines, marine auxiliary machines, generating sets, railway locomotives and other application areas of diesel engines.
Marine turbocharger / Exhaust gas turbochargers operate at high speeds, high exhaust gas temperatures, high air and exhaust gas flow rates, and high flow rates. Generally, the pressure of the exhaust gas is 0.25-0.45 MPa, and the exhaust gas temperature is 500-600 °C. The speed varies with the size of the Marine turbocharger / supercharger. The maximum speed of the large-sized supercharger is 10000 r/min, and the maximum speed of the small-sized supercharger can reach 40,000~50000r/min. Therefore, the marine turbocharger/exhaust gas turbocharger is a precision machine.
